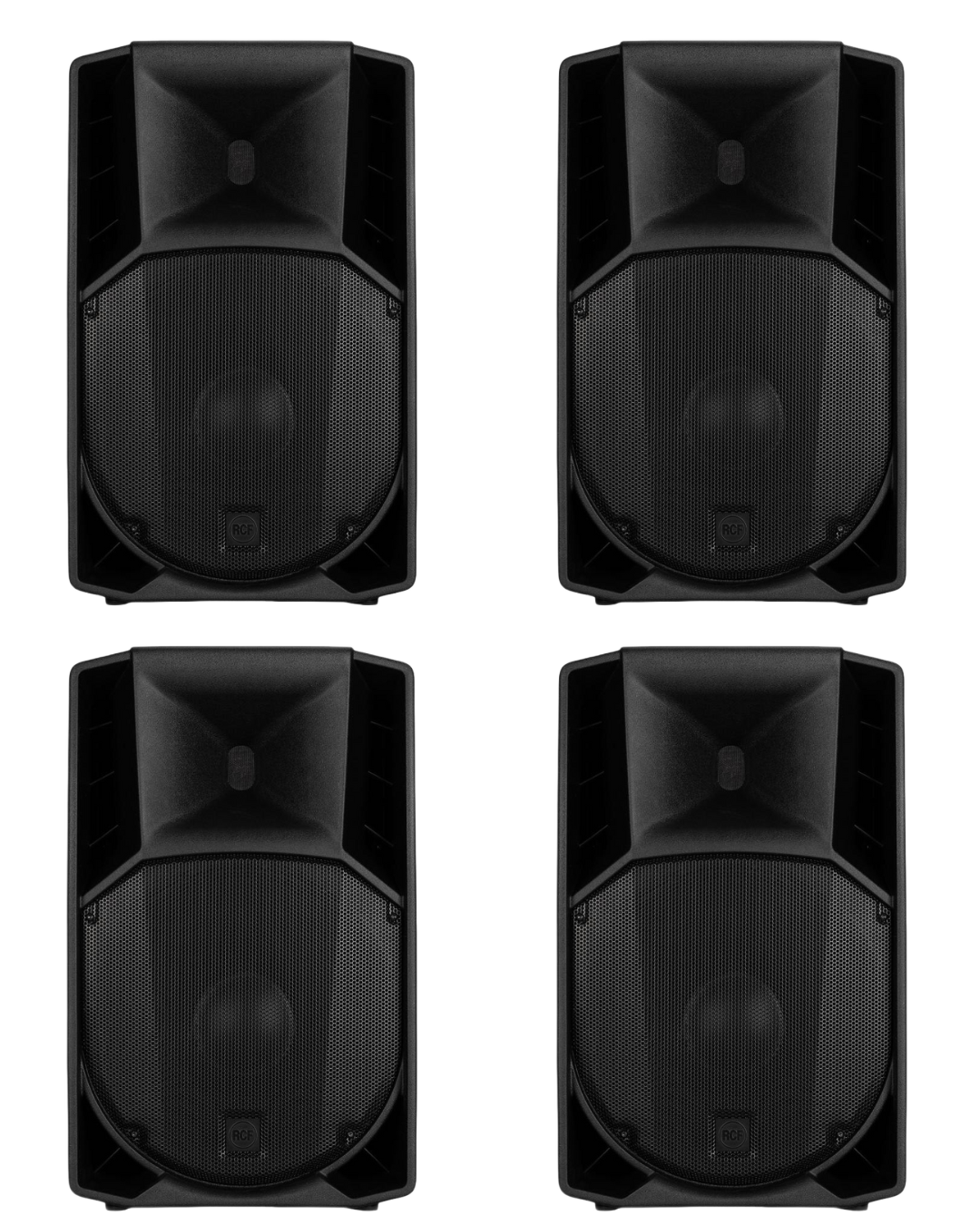

RCF ART-715A 1400W 15" MK5 x4(rcf quad)
Physical
Product Features (for 4 × RCF ART‑715A MK5)
- Covers up to around 300 people with reliable audio reach
- Delivers immersive surround-sound atmosphere for full venue experience
- Equipped with 4 × RCF ART‑715A MK5 tops for powerful performance
- Produces deep, punchy bass that hits hard
- Offers crystal-clear vocals and excellent speech intelligibility
- Can be easily paired with subwoofers (available at additional cost)
Product Features
Acoustical Specifications (per unit)
- Frequency Response: 45 Hz – 20,000 Hz
- Max SPL @ 1m: 130 dB
- Horizontal Coverage Angle: 90°
- Vertical Coverage Angle: 60°
Transducers
- Compression Driver: 1 × 1.0", 1.75" voice coil
- Woofer: 1 × 15", 2.5" voice coil
Input/Output Section
- Input Signal: Balanced / Unbalanced
- Input Connectors: XLR, Jack
- Output Connectors: XLR
- Input Sensitivity: -2 dBu / +4 dBu
- Mic Input Sensitivity: -32 dBu
Processor Section
- Crossover Frequency: 1600 Hz
- Protections: Thermal, RMS
- Limiter: Soft Limiter
- Controls: Volume, Boost, Mic / Line
Power Section
- Total Power: 1400 W Peak
- High Frequencies: 400 W Peak
- Low Frequencies: 1000 W Peak
- Cooling: Convection
Physical Specifications (per unit)
- Cabinet/Case Material: PP Composite
- Hardware: 2 × M10
- Handles: 1 Top, 2 Side
- Pole Mount/Cap: Yes
- Grille: Steel
- Color: Black
- Height: 708 mm / 27.87 inches
- Width: 437 mm / 17.2 inches
- Depth: 389 mm / 15.31 inches
- Weight: 19.6 kg / 43.21 lbs
Product Description
The RCF ART-715A MK5 is a high-performance active loudspeaker designed for professional audio applications. With a robust 1400W peak power output and a frequency response extending from 45 Hz to 20 kHz, these speakers deliver exceptional clarity and depth across the entire audio spectrum. The 15" woofer and 1.75" compression driver ensure powerful bass and crisp highs, while the 90° x 60° wide dispersion horn provides even coverage across large areas.Equipped with advanced DSP processing, the ART-715A MK5 features FiRPHASE technology for transparent sound and XBOOST for enhanced low-frequency performance. The lightweight polypropylene composite cabinet is both durable and easy to transport, making it ideal for touring, events, and installations. Whether used as mains, side-fills, or stage monitors, these speakers offer versatility and reliability for a wide range of audio applications.
